A reliable and efficient DC fast charging solution

Maximum reliability meets superior performance.

The ideal solution

- Public and semi-public parking areas
- Service stations and rest areas
- Shops
- Vehicle fleets and bus depots

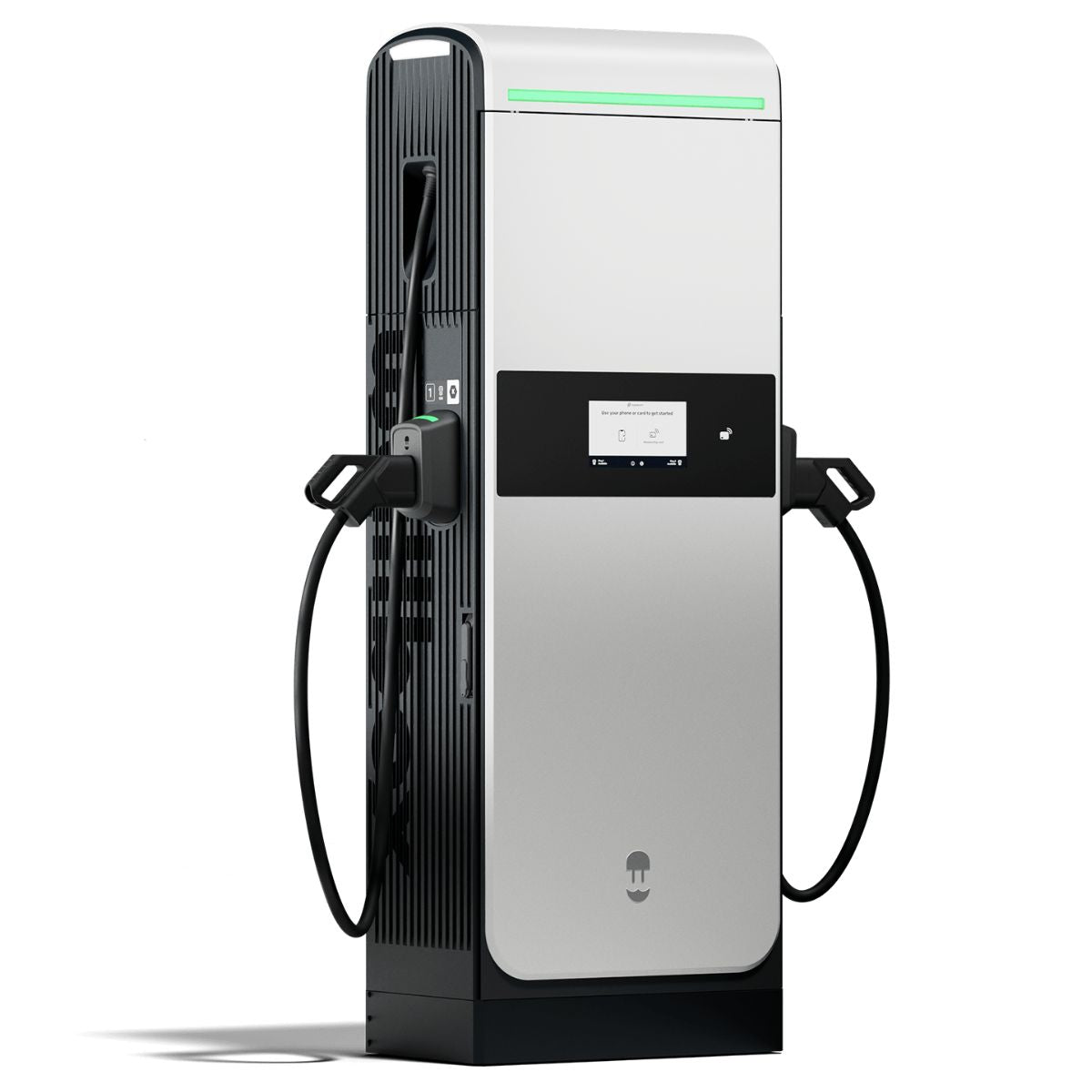

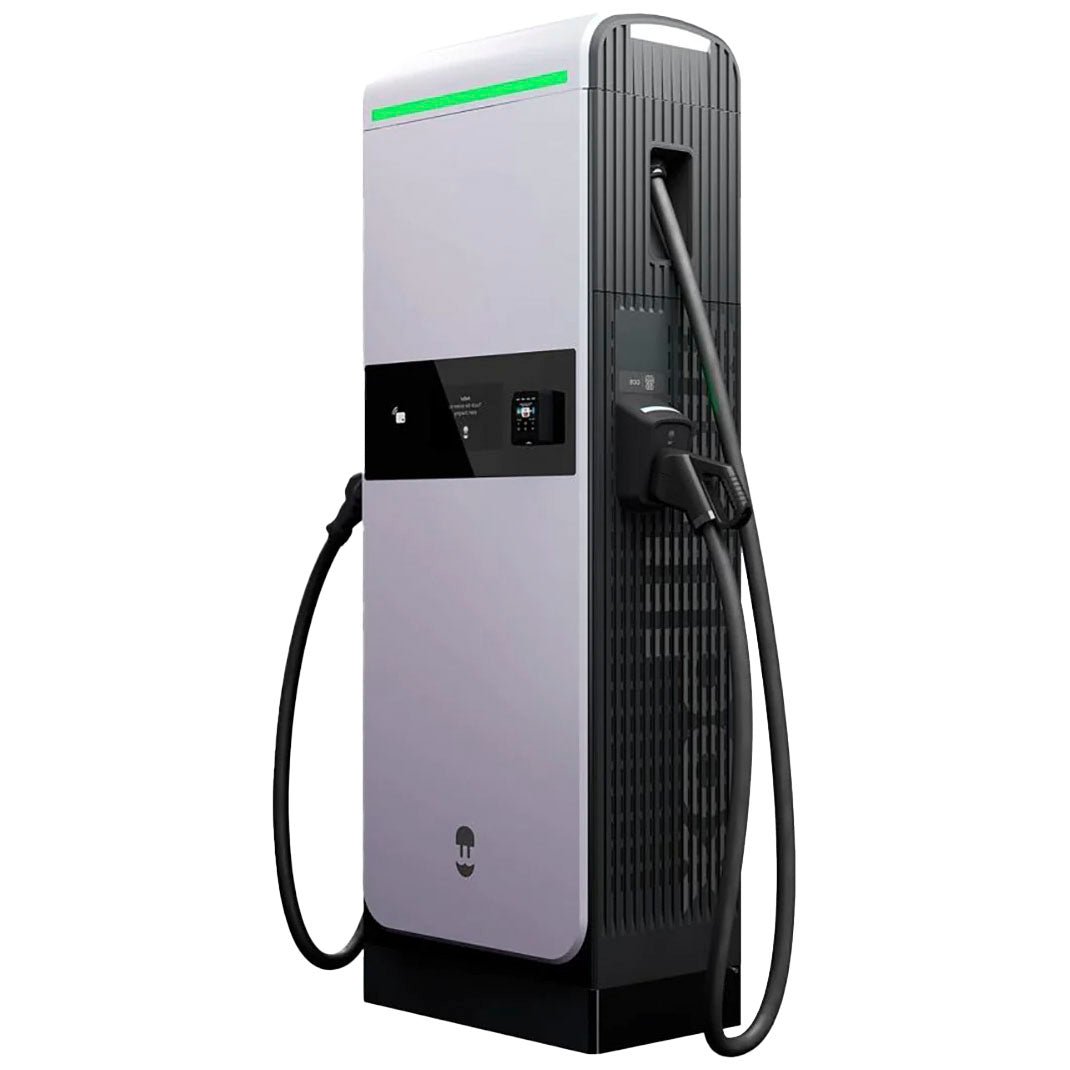

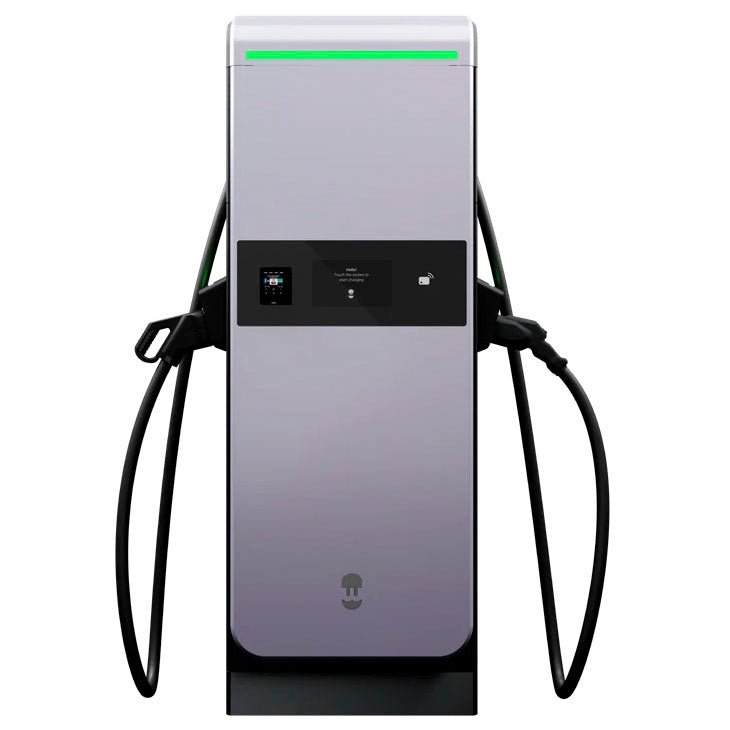

Wallbox Supernova 60kW

Charging power: 60kW
Dimensions: 2000 x 453 x 868 mm
Connector: CCS2+CCS2
Cable: 5 m
Connections: Ethernet, OCPP and 4G with external antenna
Co-branding: Can be customized at the factory

User Friendly - Sleek design and intuitive charging experience
- Interactive light system
- 10" sunlight-readable color touchscreen
- Cable management system
- Several payment options

Flexible - Takes up little space and offers customizable features for future needs.
- One of the smallest space requirements on the market
- Remote software updates for automatic installation of the latest features

Specifications

• Power: 60 kW
• Output current: 400 A
• Output voltage: 150-1000 VDC
• Supply voltage range: 400 VAC ± 10%, 50-60 Hz; 3P+PE
• Maximum input current: 350 A (at 220 kW DC output power)
• Electrical protections: Mains disconnection, overvoltage protection, fuses, MCCBs
• Dimensions: 2136 x 453 x 1219 mm
• Weight: 400 kg
• Environmental classification: IP54, IK10, at an altitude of 2000 m
• Operating temperature: -30°C to 50°C


Connections and Control

• DC connectors: CCS2 + CCS2
• Cable length: 5 m
• Cable Management: Returns the cable to its original position
• User interface: 10" vandal-resistant color touchscreen (readable in sunlight), LED status lights
• Identification: Application (OCPP) / RFID
• Backend connection protocol: OCPP 1.6J, OCPP 2.0 (hardware ready), Plug & Charge (hardware ready)

The perfect solution for public and commercial use when reliable, efficient and adaptable fast charging is needed.
