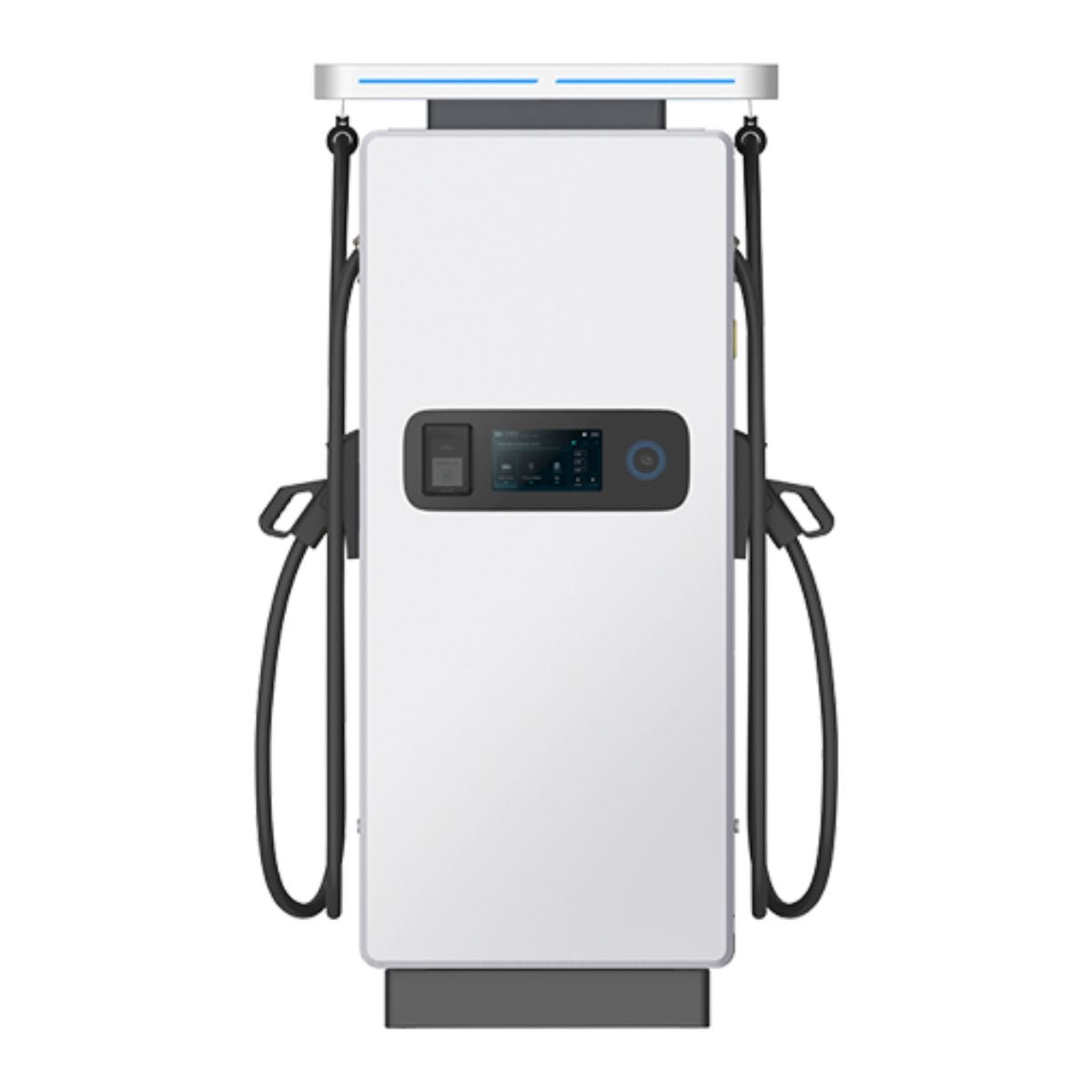

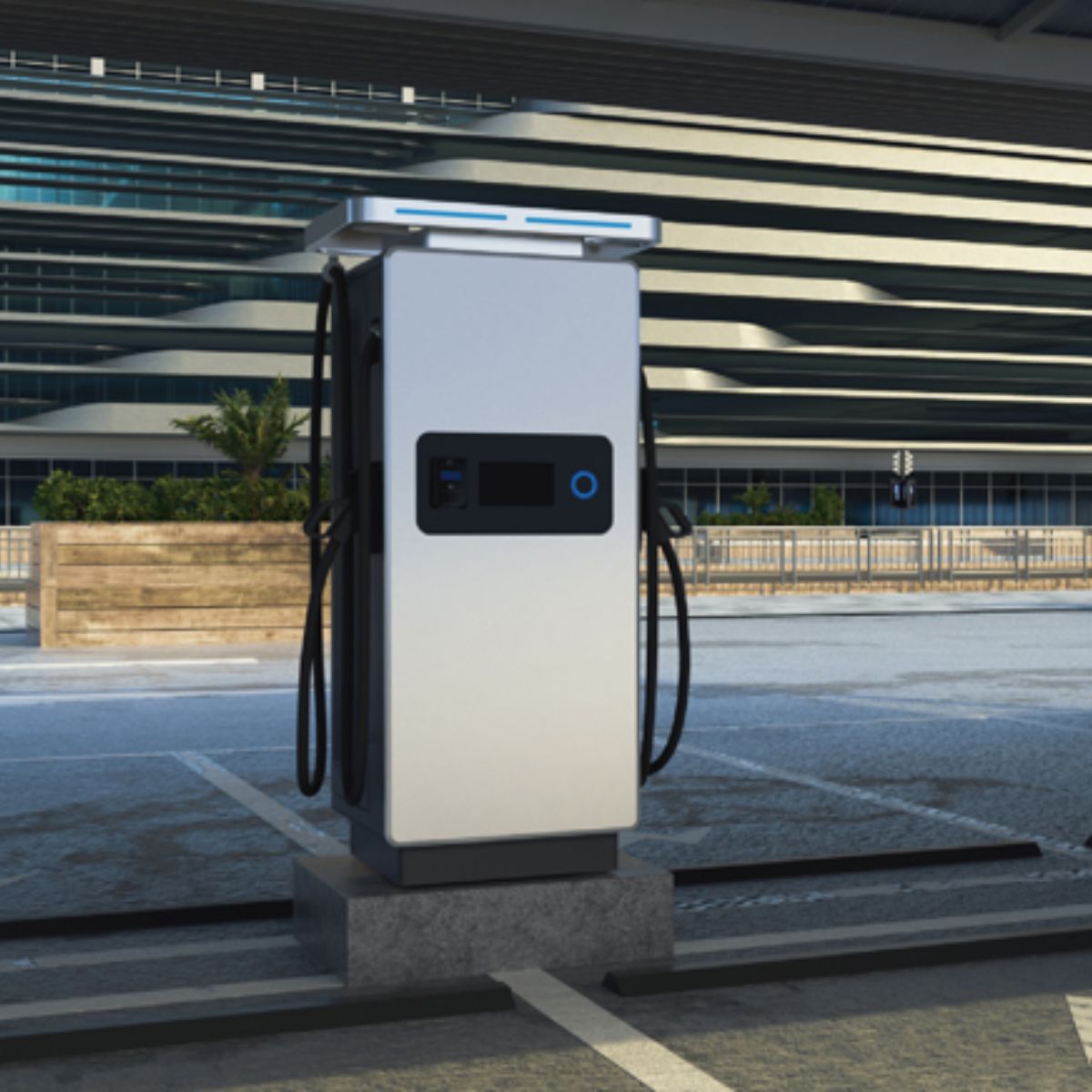

180 kW Fast charging DC Charging station
This reliable and efficient fast charger is designed for the demanding charging needs of electric vehicles. It offers excellent performance and durability with a lifespan of over 10 years, and its IP65 protection and C5 corrosion protection ensure safe use in all conditions.
Reliable and safe
- IP65 protection and C5 corrosion protection
- More than 10 years of service life
- Maintenance-free without the need to change the dust filter
- Self-designed and self-made power modules
User friendly
- Supports multiple identification and payment options
- The charging cable management system improves the user experience
Efficient and intelligent
- Maximum efficiency up to 96.5%
- Dynamic load management optimizes the charging process
Flexible fit
- Adaptive voltage range 200-920 Vdc
- Readiness for compatibility with solar power and energy storage systems
Specifications
- DC output power: Maximum power: 180 kW
- DC output voltage: 200 Vdc to 920 Vdc
- Connector 1: CCS2
- Connector 2: CCS2
- Mains current: 3 / N / PE, 380 Vac / 400 Vac (± 10%)
- Nominal mains frequency: 50 Hz / 60 Hz
- Grounding system: TN-C / TN-S / TN-CS / TT
- Rated input current: 289 A (180 kW), 241 A (150 kW), 193 A (120 kW)
- Power factor: ≥ 0.99
- Total Oscillation Current (THDi): < 5% at full power
- Overvoltage category: III
- Standby power consumption: ≤ 48 W
- Efficiency: Up to 96.5%
User interface:
- Display: 10-inch color touch screen
- Language: English (default), other languages available with firmware update
- Identification: RFID card / Plug & play / Auto-charge (default)
- Optional identifications: Plug & charge / Debit or credit card
- Firmware updates: OTA (over-the-air) via the iEnergyCharge app
Dimensions and other information:
- Dimensions (LKS): 930 mm 1930 mm 615 mm
- Weight: ≤ 500 kg
- Installation method: To be installed on the floor
- AC cable specification: Min. 150 mm², Max. 240 mm²
- Housing: IP65 protection
- Corrosion protection: C5
- Mechanical shock protection: IK10
- Operating temperature range: -35 °C to 55 °C
- Relative humidity: 5% - 95% (non-condensing)
- Operating altitude: ≤ 2000 m
- Cooling: Intelligent forced air circulation
- Noise level: ≤ 65 dB (A) at a distance of 1 meter / at 25 °C, at full power
Certificates and standards:
- Certificates: CE, CB, UKCA
- Compatibility:
- SEARCH / EN 300 328, EN 300 330, EN 301 489-1 / 3 / 17 / 52
- SEARCH / EN 301 908-1 / 13
- EN 50665
- BS/EN IEC 61851-1, BS/EN IEC 61851-21-2
- BS / IEC EN 61851-23 / 24
- EN IEC 62311
